Oracle Cloud VMware Solution
(OCVS)

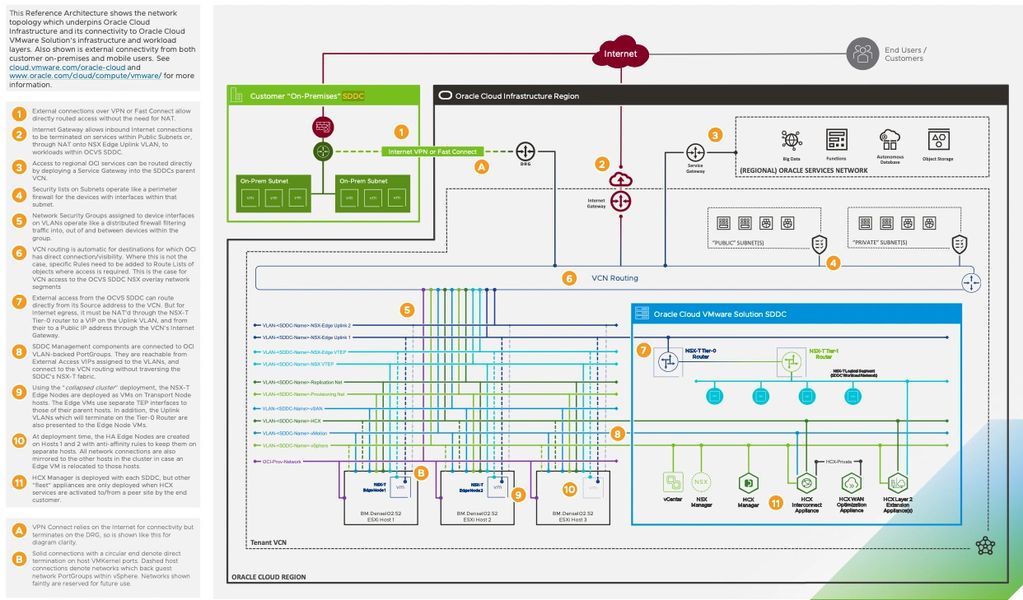

Oracle Cloud VMware Solution
(OCVS)
The OCVS SDDC deploys on Oracle Cloud Infrastructure (OCI) bare metal servers. Start with a minimum 3 ESXi hosts  and scale up to 64 hosts in a single SDDC. The VMs are isolated in the NSX Overlay subnet. The NSX Edge provides the network address translation (NAT) of the IPs in the NSX Overlay to the OCI virtual local area network (VLAN). OCVS SDDC uses OCI Bloc

Oracle Exadata Database Service on Dedicated Infrastructure
Allows Oracle to manage the Exadata hardware while customers manage everything within the database VM, including OGI, database software, data, and encryption keys. Maintenance windows can be scheduled to business needs. OCI Automation simplifies tasks like provisioning, scaling, updates, backups, and disaster recovery. Users connect via c
